WANDEARAH
The Southern Frontier For Gawler IOCGs
Targeting giant Carrapateena & Prominent Hill style Cu-Au IOCG deposits
Project Status: Drilling Q4 2026
THE SETTING
No longer just an "AI" target but a true Gawler Craton Tier One target.
THE TARGETS

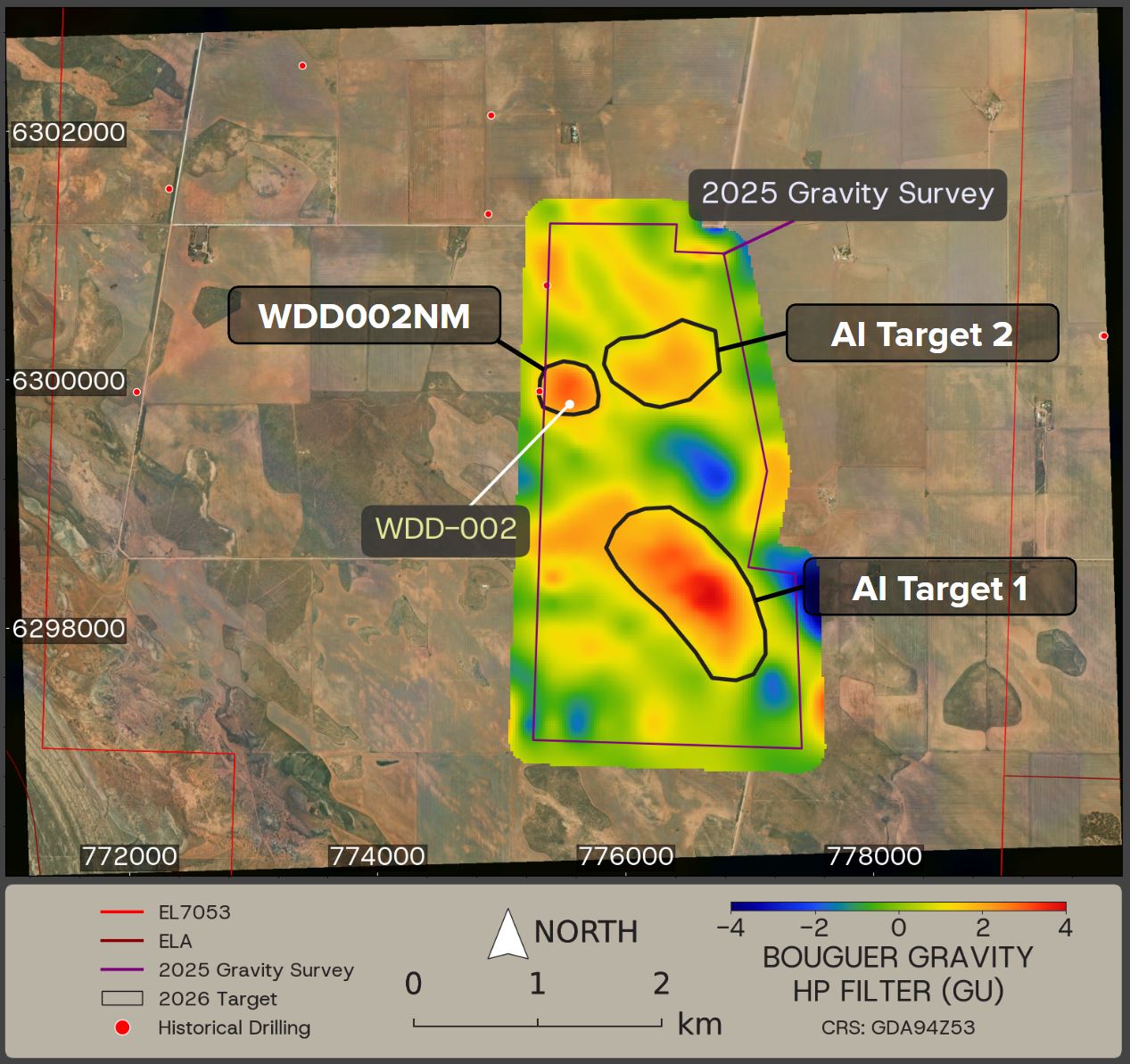

Two untested AI targets and a near miss target revealed in our 2025 gravity survey.
THE STORY
We are confident Wandearah is in the goldilocks zone for gigantic multi-decade mine life sized IOCG deposits that South Australia is famous for.
1.
Historical drillhole WDD-002 (2008, Rex Minerals) shows evidence of HIOCG style alteration systems.
Although completely barren of Cu, a 50m zone of hematite alteration shows the same As/Sb enrichment present in barren zones of the HIOCG deposits, with the hematite zone peaking at 501-502m with 40.61%Fe, 19ppm Sb and 135ppm As.

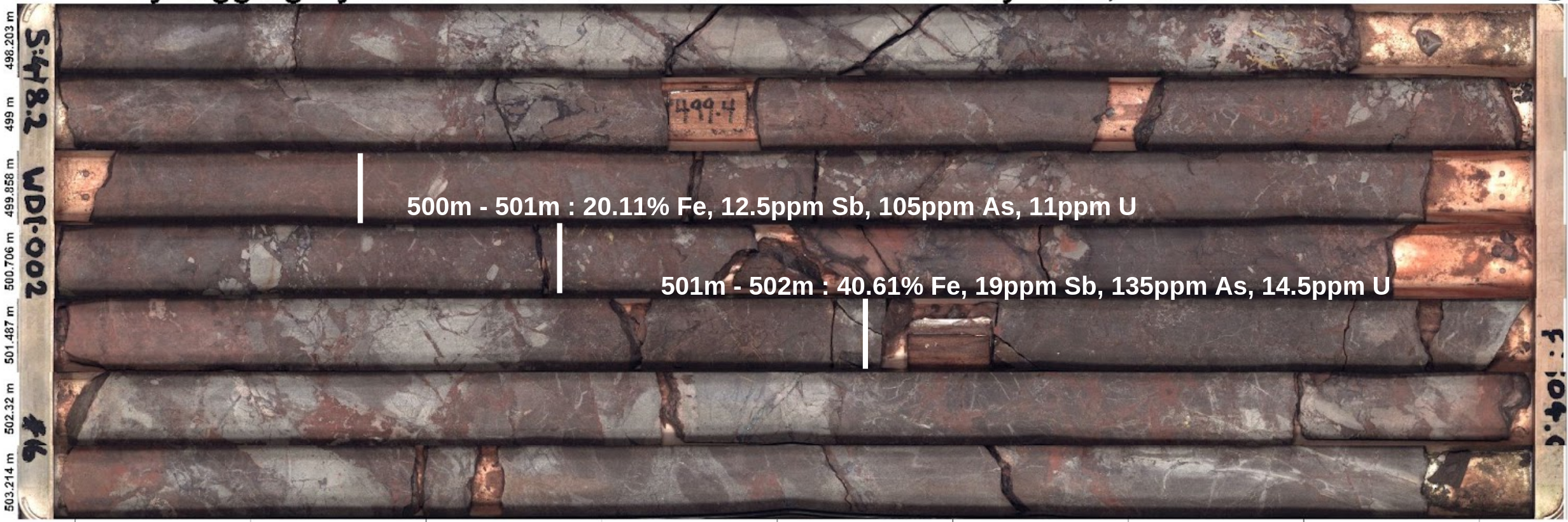

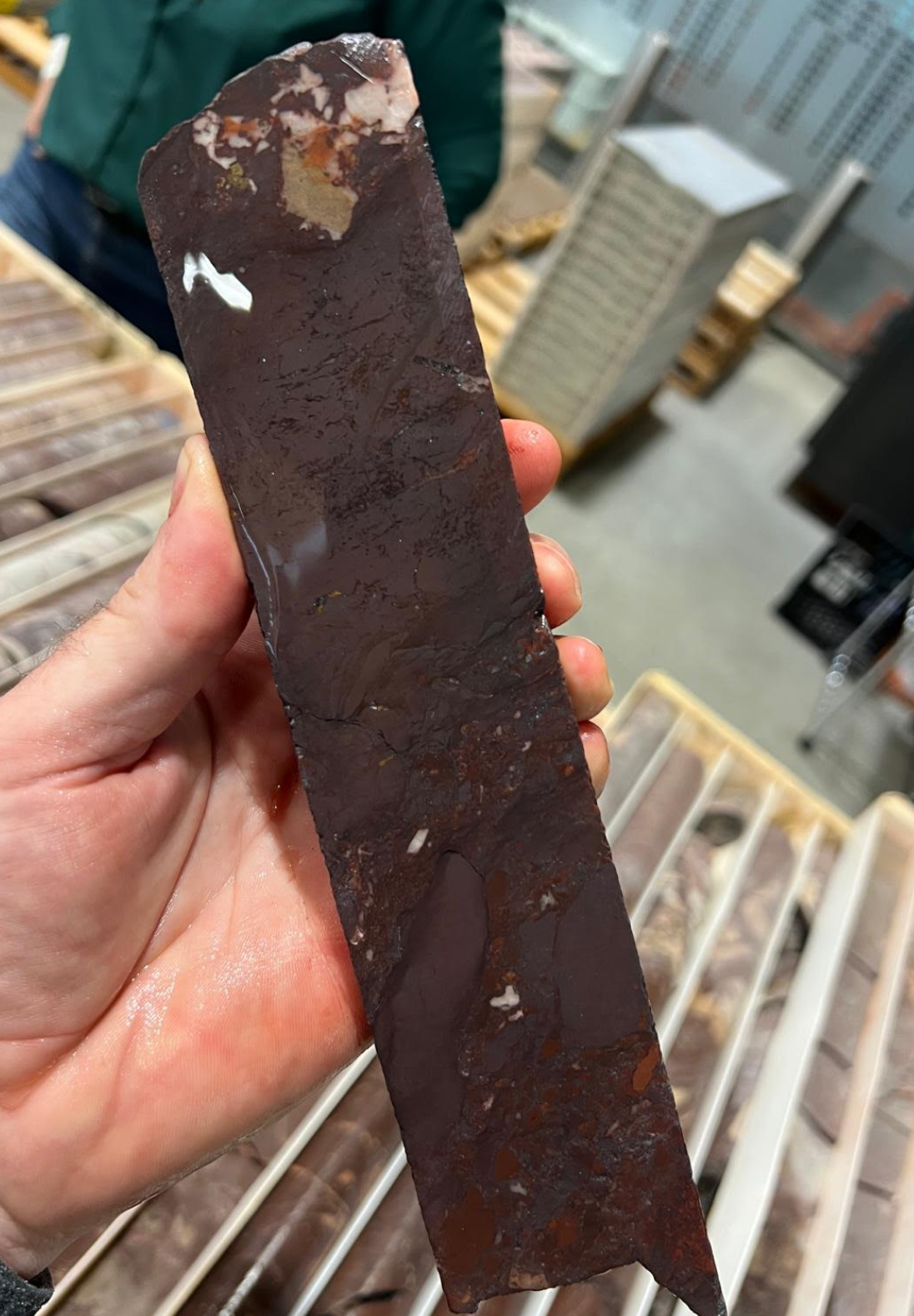

WDD002 - 500m - STEELY HEMATITE
.jpg)

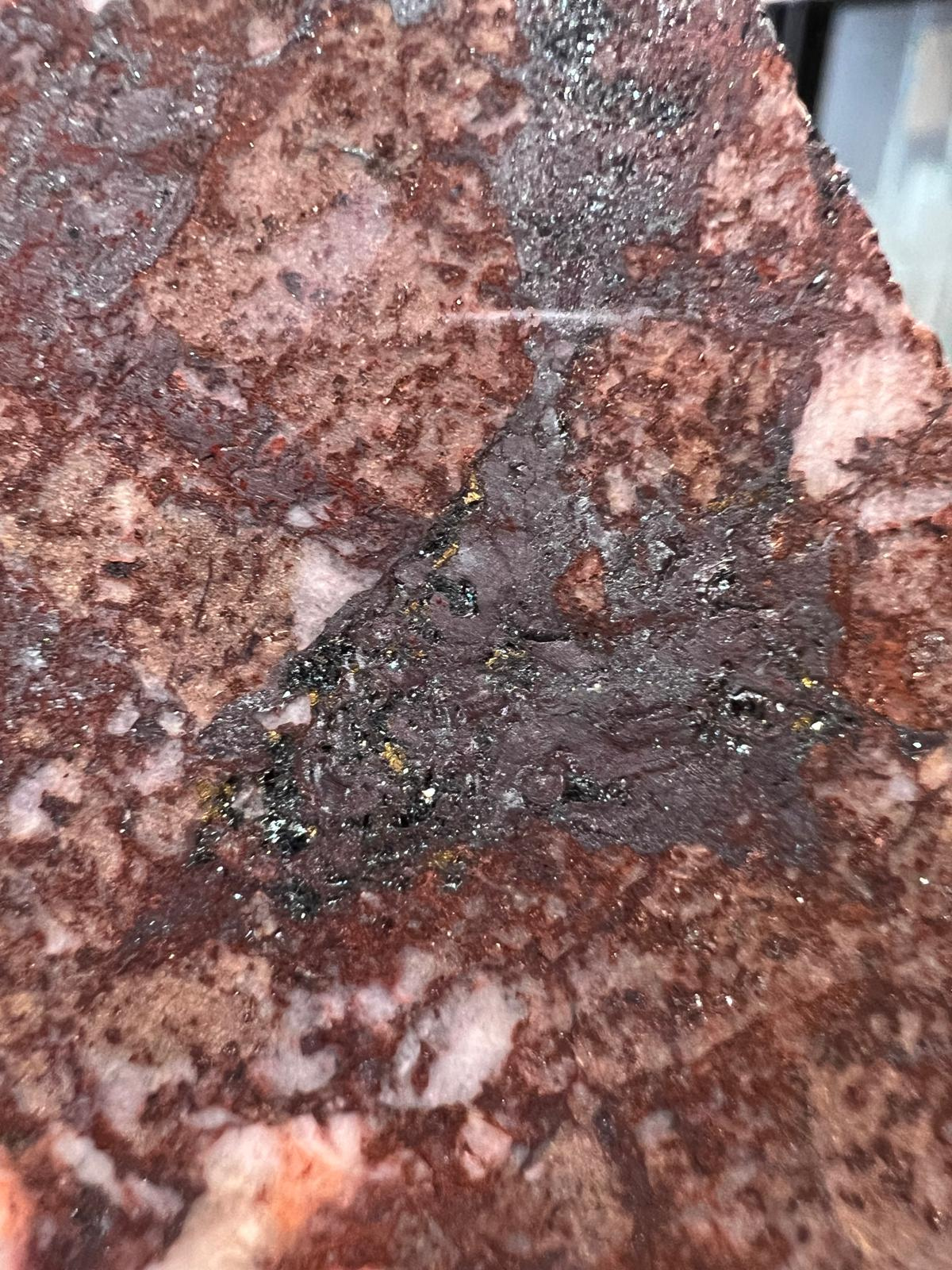

WDD002 - 477m - MULTIPHASE HEMATITE BRECCIA W/ SULPHIDE
.png)

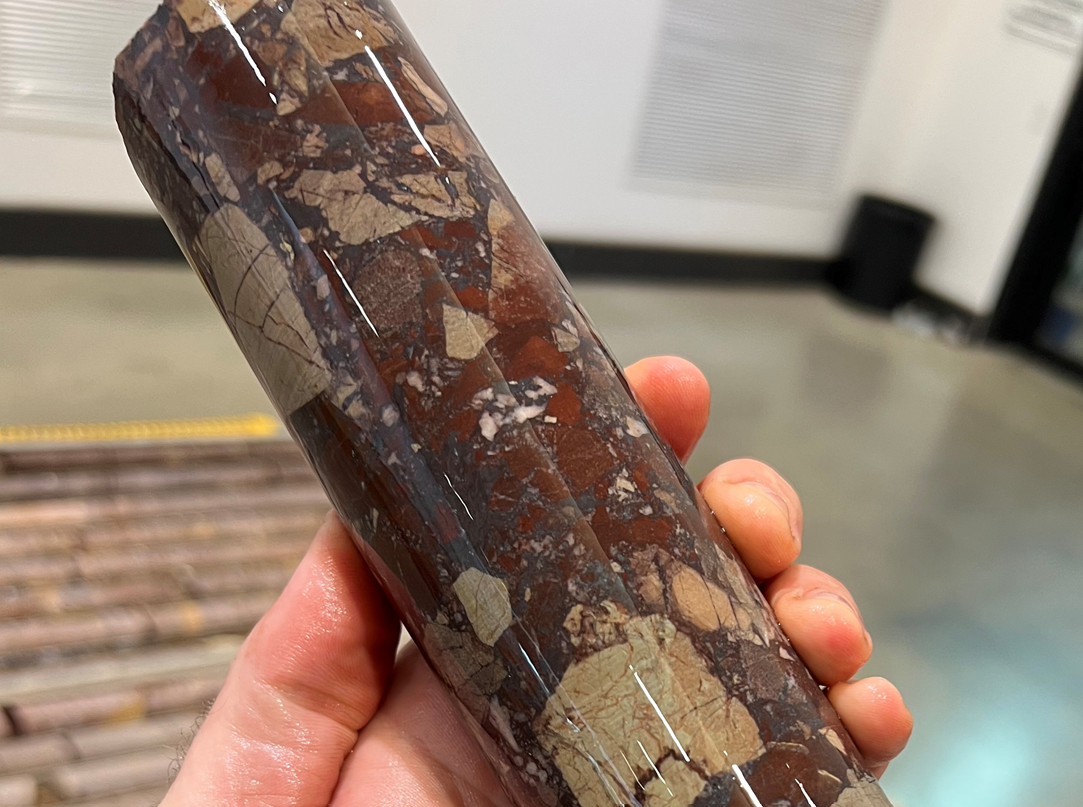

WDD002 - 480m - POLYMICT MULTIPHASE HEMATITE BRECCIA
2.
Our gravity survey completed in 2025 shows WDD-002 has just clipped a gravity anomaly.
Gravity surveys completed in the 2000s had QAQC issues that prevented proper targeting of HIOCG deposits. We redid measurements over our main AI target and WDD002 to modern standards, confirming the validaty of our main AI target and revealing that WDD-002 has just clipped a real gravity anomaly.
Swipe below to compare difference in gravity anomalies.

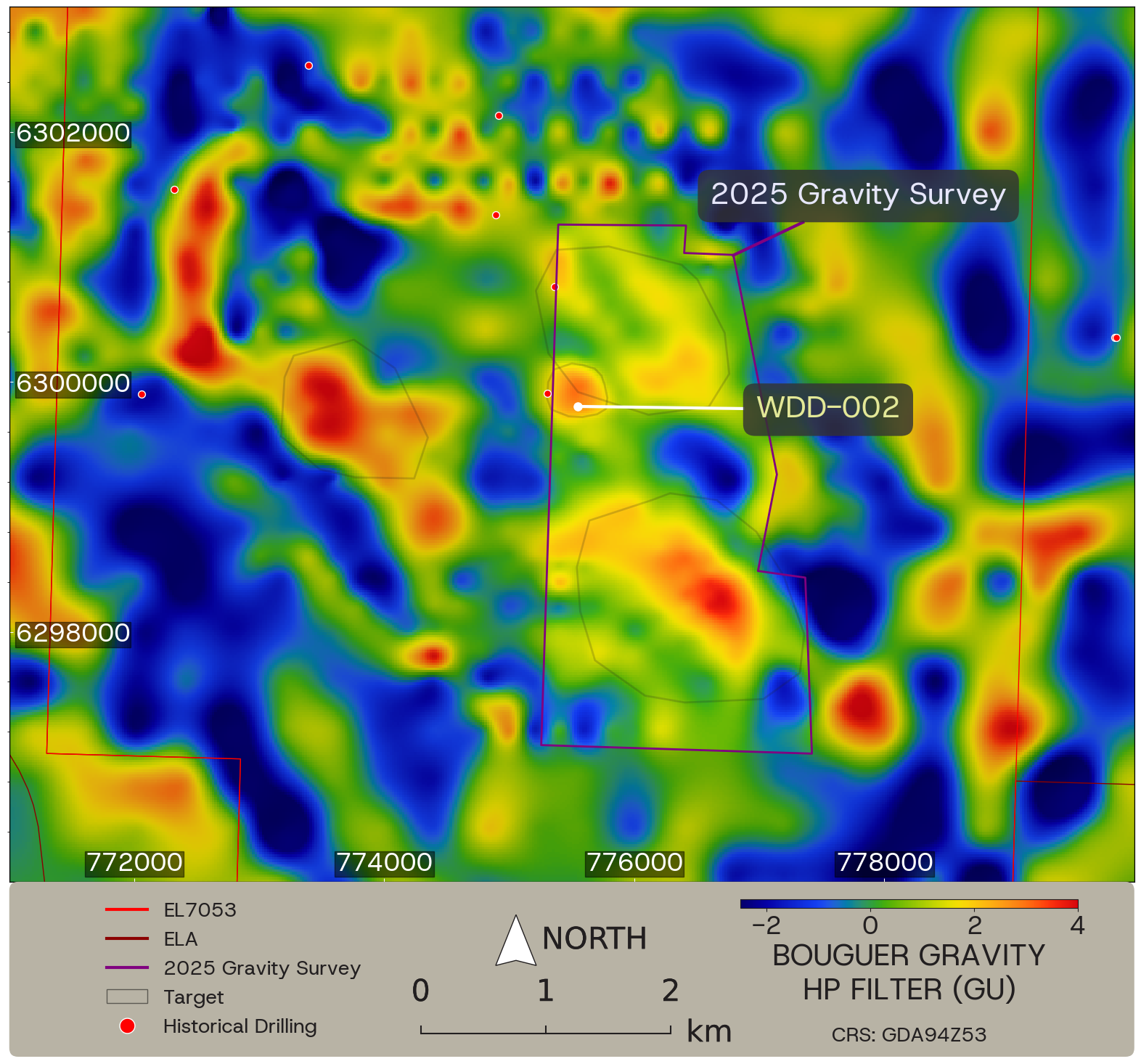

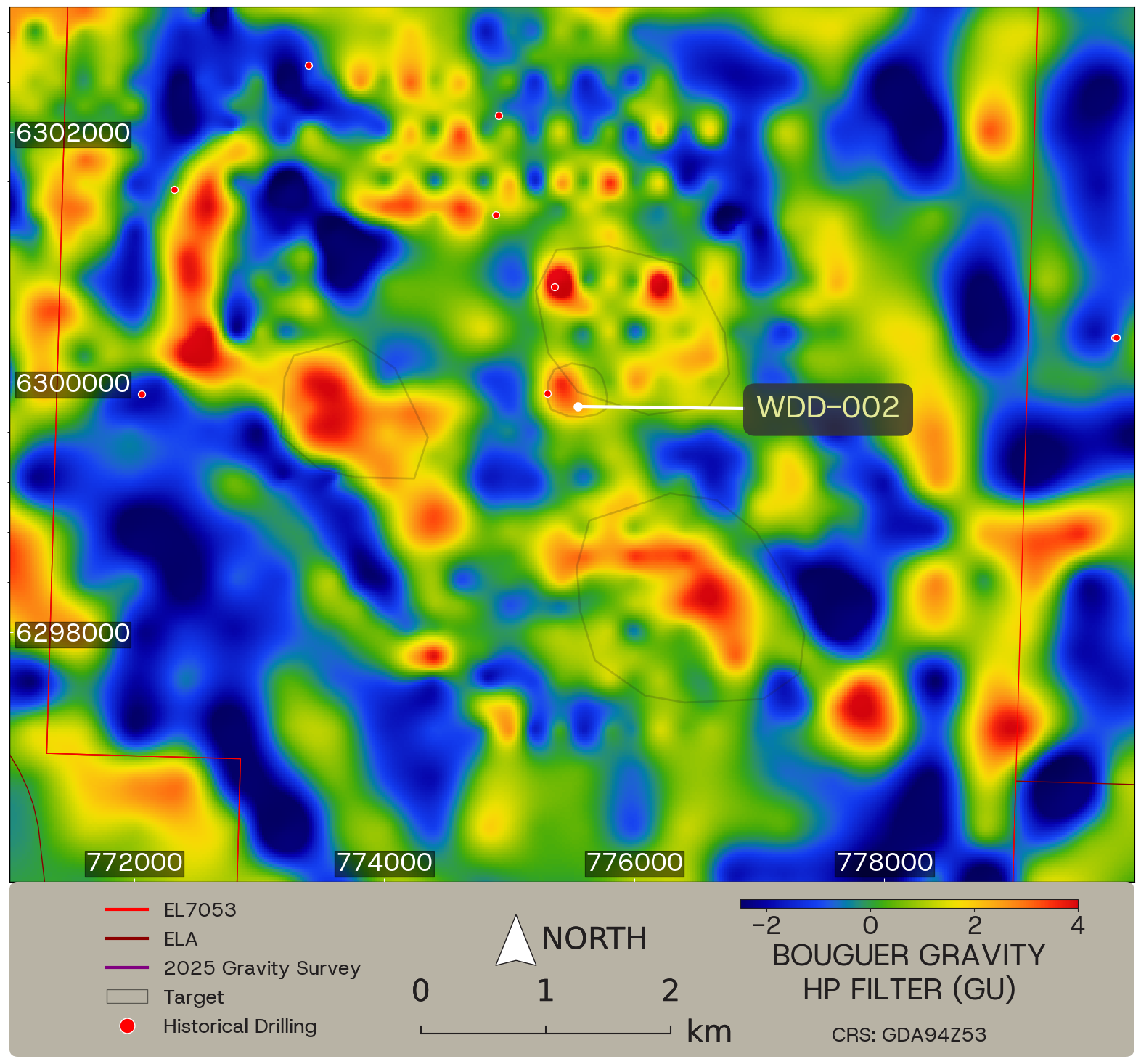

(Left - Old gravity data, Right - New gravity replacing old gravity data)
Swipe below to compare difference in gravity anomalies.
(Left - Old gravity data, Right - New gravity replacing old gravity data)
